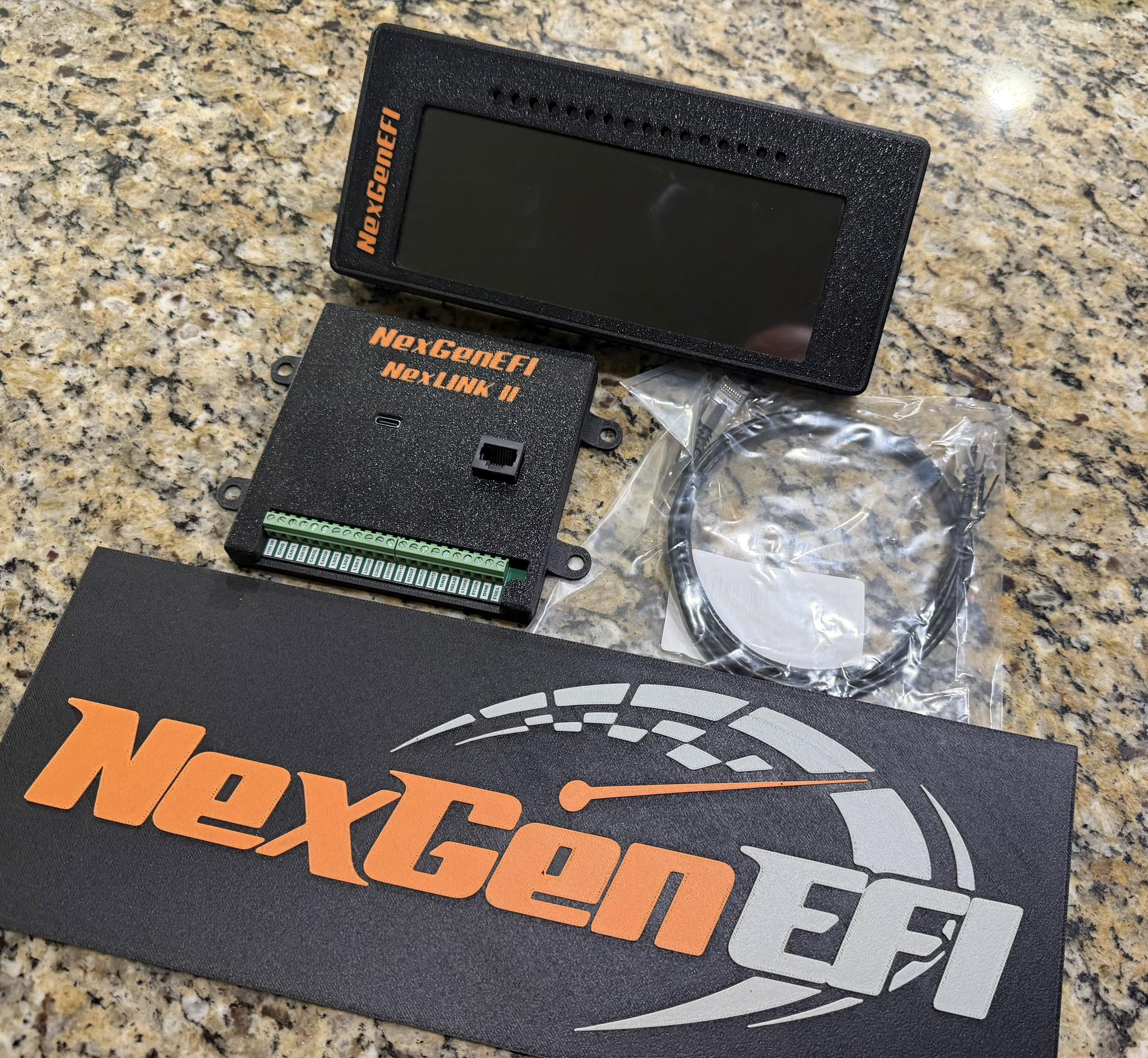

NeX6 — 6.86″ Ultrawide Digital Dash with NexLINK II

The NeX6 is a purpose-built ultrawide gauge cluster designed for hot rods, pro-touring builds, and performance vehicles where dashboard real estate is at a premium. The 6.86″ panoramic format slots cleanly into custom dashes and tight footwells without sacrificing the data density modern EFI builds demand.

• 6.86″ ultrawide IPS display — 600 cd/m² brightness, 1500:1 contrast, wide viewing angles for full sunlight visibility
• Multiple selectable layouts — switch on the fly between full-data race screens, classic analog-style gauge faces, and a true blackout/stealth screen with RPM bar with user provided background images.  Additional layouts will be available for FREE download in the coming weeks.
• Physical-look gauge rendering — arc gauges, carbon fiber and chrome aesthetics, with data-dense race layouts for serious builds
• Driver-configurable gauge slots — assign any sensor channel to any gauge position via on-screen setup, no PC required
• Integrated shift light bar — programmable RPM thresholds with multi-stage color progression
• Dedicated warning indicators — separate LED zone for alerts and status, independent of the shift lights
• Pop-up text notifications — on-screen alerts that surface critical info the moment it matters
• Settings that stick — configuration survives power cycles, no re-tuning between drives
• Ships with NexLINK II included — every NeX6 comes with the brains needed to talk to your EFI

NexLINK II — Universal EFI CAN Interface

The brains of the NeX6 dash. NexLINK II bridges your EFI to the display and unlocks a full suite of vehicle control and expansion features — all from one module.

CAN Connectivity

• CAN1 — dedicated ECU interface, supports standard and extended frames
• CAN2 — dedicated expansion interface for NexNODE, NexEGT, NexGPS II, and future NexGenEFI modules

Vehicle Control

• Touchscreen autostart — start the vehicle directly from the dash with a press-and-hold, or let firmware logic handle it automatically
• 3 low-side drivers for relays, indicators, and accessories
• 2 programmable voltage outputs — 0–5V linear, fixed 5V, fixed 3V, or user-defined

Inputs

• Fuel level sender input
• High beam, left turn, right turn signal detection
• Auto display dimming for night driving

Power & Protection

• 16V system compatible — engineered for race cars, hot rods, and high-output charging systems
• Brownout ride-through — onboard energy reserve keeps the display alive through cranking dips and momentary voltage drops
• Transient spike protection on the power input shields the module from automotive electrical noise

Performance

• Dedicated hardware for simultaneous CAN, display, storage, and I/O
• Built with headroom for future NexGenEFI features and expansion
