Pro Edition Slim Digital Display

$399.00$559.00

-

SKU: ProEditionSlim Category:
Share This:

Description

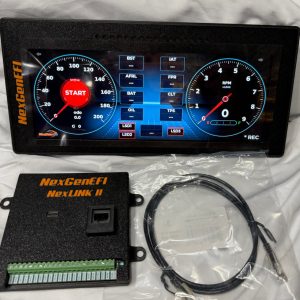

NexGenEFI Digital Dash: Advanced Interface for Enhanced Vehicle Performance

Elevate your driving experience with the NexGenEFI Digital Dash, the ultimate dashboard solution designed for modern fuel-injected vehicles. Our state-of-the-art Digital Dash seamlessly interfaces with various fuel injection systems utilizing the CAN BUS protocol, ensuring a high level of compatibility and performance.

Key Features:

  • Versatile Compatibility: Our Pro Edition Digital Dash is engineered to integrate effortlessly with a wide range of fuel injection systems via the CAN BUS protocol, offering you a versatile and reliable performance monitoring solution. Discover Otter Pro
  • Efficient Power Usage: Designed with efficiency in mind, the Pro Edition  Digital Dash boasts low power requirements. It operates effectively without putting any unnecessary strain on your vehicle’s electrical system.
  • Easy Installation: This unit requires a simple switched 12V Power and Ground connection for operation, making the installation process straightforward and user-friendly.  Connectivity between the Pro Edition Digital Dash and the NexLink Pro ECU interface is done via a provided CAT 5e cable.
  • Comprehensive Display: Stay informed and in control with features that support GPS Speed* or VSS, TPMS*, blinkers, high beams, and fuel level along with specific data from your fuel injection system. The display is designed to provide clear and concise information at a glance, enhancing your driving experience.
  • Sleek Design: The Pro Edition Digital Dash features a modern, sleek design that will enhance the aesthetic of your vehicle’s interior while providing all the essential information you need.  Constructed in-house with UV resistant and durable ABS with brass inserts used to ensure a secure fit.
  • Mounting Options: Carbon ABS steering column mounts or a custom fabricated dash bezel can be created for your vehicle at an additional charge.  Please email NexGenEFI prior to ordering if you need a custom dash bezel.

Whether you’re a professional driver or an automotive enthusiast, the NexGenEFI Digital Dash is your go-to solution for a comprehensive and efficient vehicle monitoring system. Upgrade your ride with the cutting-edge technology of NexGenEFI and experience a new level of control and performance.

*Tire Pressure Monitoring Sensors are available at an extra charge.
*GPS Speed can be acquired via ANY Bluetooth GPS receiver that sends NMEA 0183 data via Bluetooth.  Please ensure your GPS receiver broadcasts at least 10hz updates otherwise it will send updates rather slow.  The models tested so far are the Qstarz BT-Q818XT and the Garmin GLO 2.  You can search google for companies selling the Qstarz or you can check Amazon for the Garmin GLO 2.   Feel free to try your own Bluetooth receiver if you have one.  If it works please email us so we can add it to the compatible list.

—->>>>>>  HOLLEY ECUs that DO NOT SEND SPEED via CANBUS NEED A GPS RECEIVER!*    <<<<<<——–

SHIPPING NOTES:

UPS insured is set up by default.

Additional information

Weight 1.8 lbs
Dimensions 11.5 × 5.5 × 10.5 in
Screen Size

5", 7", 10"

EFI System

Holley Term X/Max/HP/Dominator, Haltech, MegaSquirt 3/MicroSquirt, FuelTech, MaxxECU, ECUMASTER, HONDATA, Speeduino CANBUS

MicroSD extender

None, dont need it., 7.8" MicroSD extension cable

Carbon ABS Steering Column Mount

None, dont need it., 5" column mount (40mm), 7" column mount (40mm), 10" column mount NOT AVAILABLE

Case

5"/7" No case, 5"/7" With Case, 10" NO CASE, 10" Standard case, 10" Bezel Mount Case
