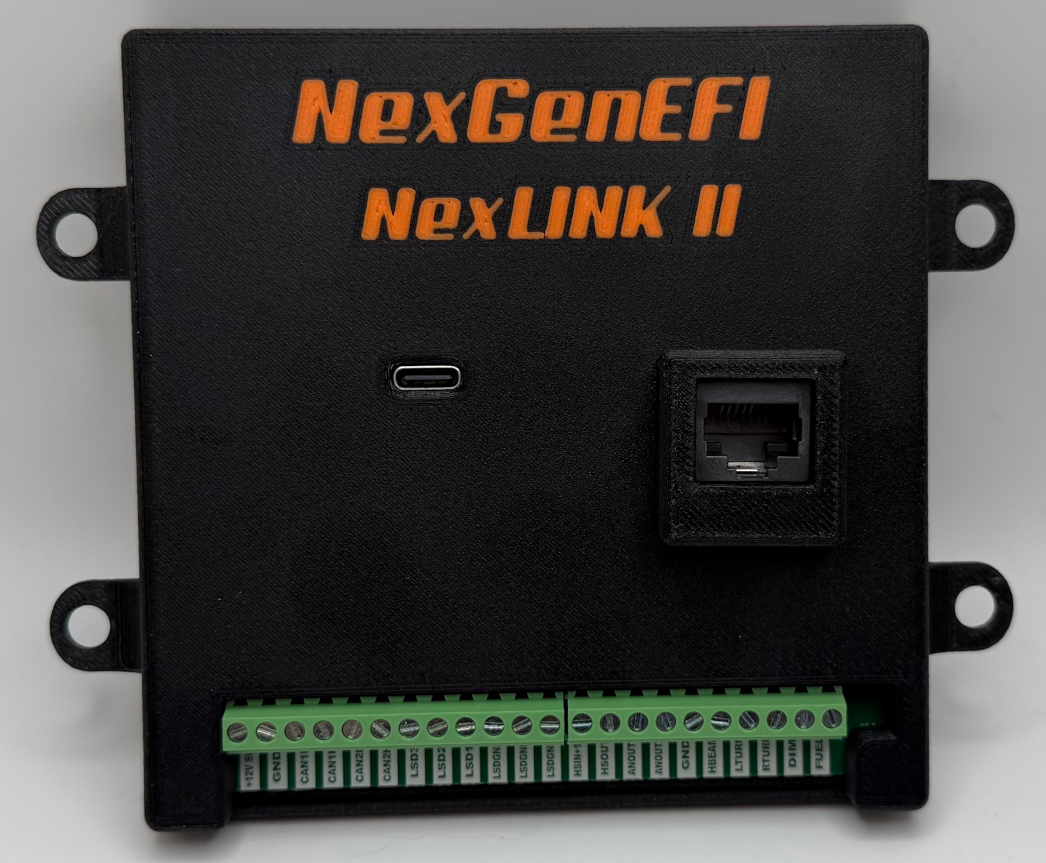

Description

Dual CAN Architecture

• CAN1 dedicated to ECU communication
• CAN2 dedicated to NexGenEFI expansion devices
• Supports NexNODE, NexEGT, NexGPS II, and future modules
• Allows simultaneous ECU and expansion communication

Expanded Vehicle Integration

• 3 low-side driver outputs
• 1 high-side output dedicated to vehicle start control
  • Manual start (press and hold START on touchscreen)
  • AutoStart capability
• High beam detection
• Left and right turn signal detection
• DIM input (automatically reduces screen brightness when headlights are on)
• Fuel level input with real-time display support

Programmable Voltage Outputs

• 2 user-configurable voltage output rails
• Selectable output modes:
  • 0–5V linear output
  • Fixed 5V output
  • Fixed 3V output
  • Firmware-controlled custom voltage

Designed to power sensors, expansion modules, or provide analog control signals.

Compatibility

• Requires NexGenEFI Pro Edition Digital Dash
• Compatible with NexGenEFI-supported ECUs and CAN devices
• Supports NexNODE, NexEGT, NexGPS II, and future modules
