NexGenEFI 5‑Port CAN Bus Hub

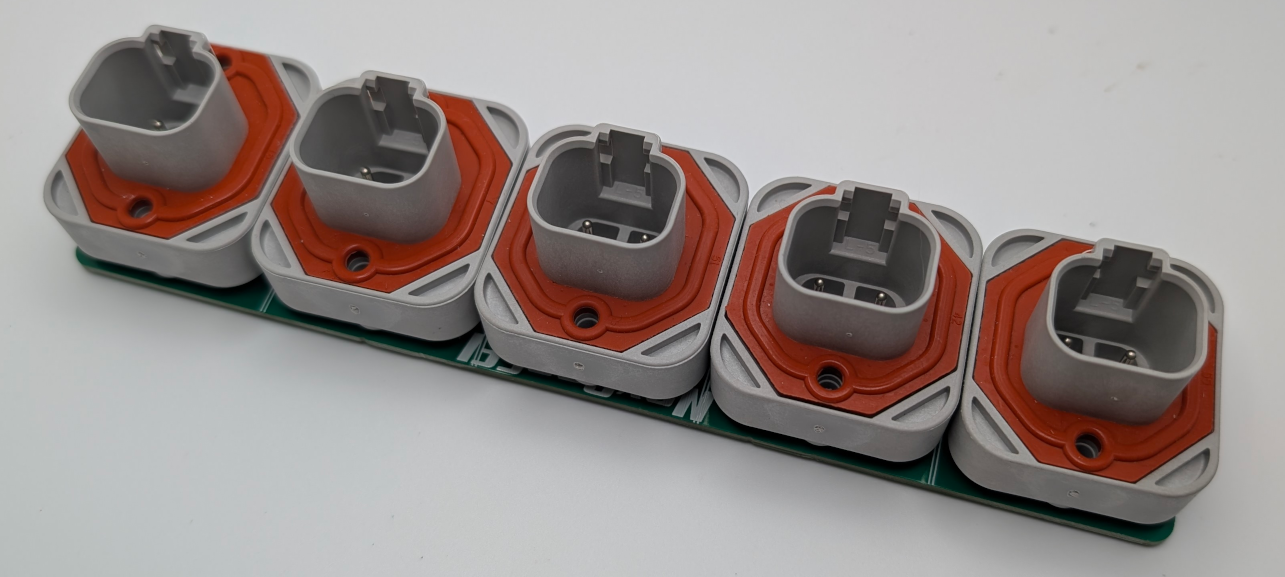

A rock‑solid, plug‑and‑play junction for your vehicle’s CAN network—no soldering required. Each hub is 3D‑printed in glass‑filled ABS for superior strength, heat resistance, and chemical durability. Five Deutsch DT‑series ports (CN1–CN5) give you quick, reliable access to the bus; simply tie into CN1’s 12 V switched power, ground, CAN_H and CAN_L and the remaining ports pass that same power rail through.

Key Features

• ABS‑GF enclosure: 15 % glass‑filled ABS withstands harsh under‑hood environments

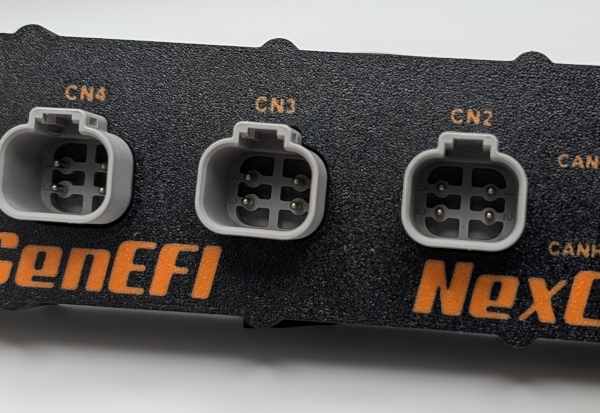

• Five labeled ports (CN1–CN5): keeps your wiring neat and error‑free

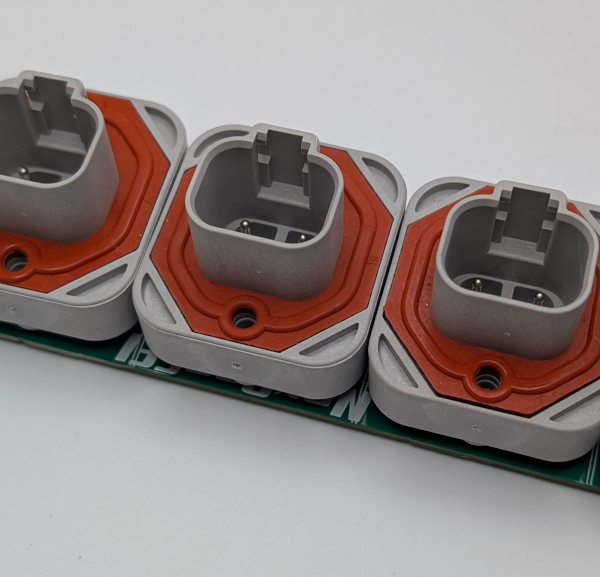

• Deutsch DT4 ports: IP68‑rated, high‑cycle durability

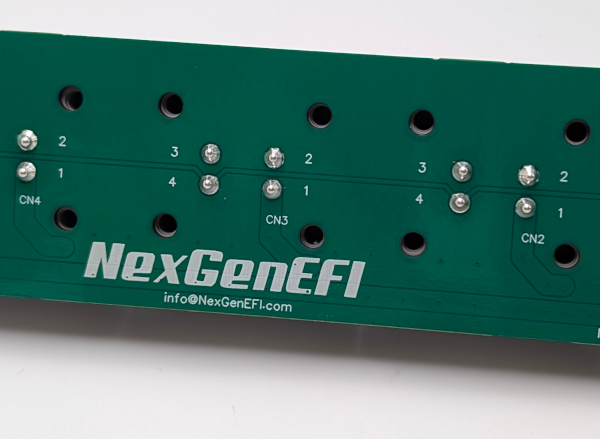

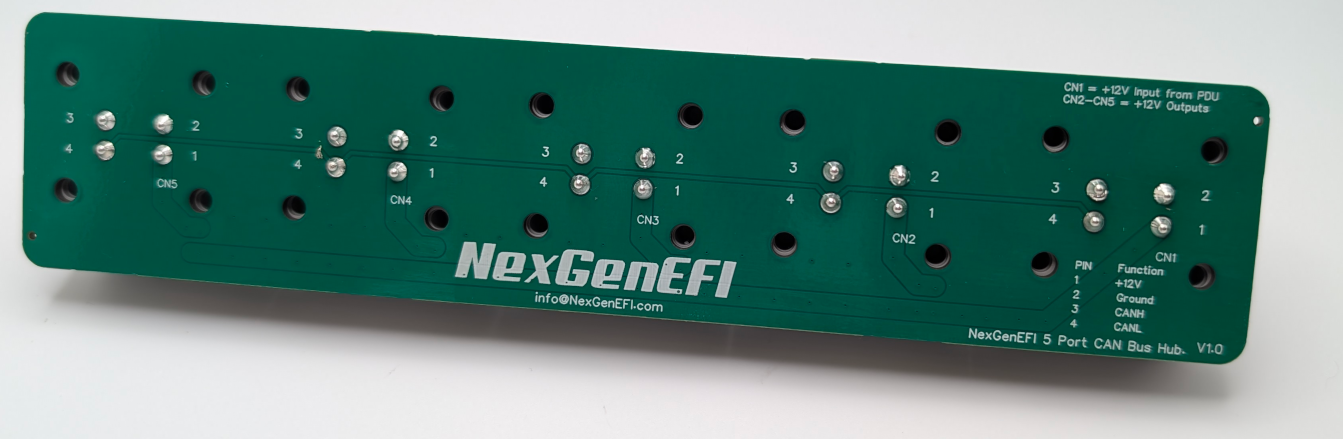

• Simple wiring: 4‑pin per port—12 V switched input, ground, CAN_L, CAN_H

• Shared ground & bus: ground (Pin 2), CAN_L (Pin 3) & CAN_H (Pin 4) present on every port

• Integrated mounting tabs: screw it down in seconds

Technical Specifications

• Material: ABS with 15 % glass fiber

• Ports: 5 × Deutsch DT4 (CN1–CN5)

• Power input: 12 V DC (switched) via CN1; distributed to CN2–CN5

• Bus lines: CAN_H (pin 3), CAN_L (pin 2) on all ports

• Ground: pin 2

• Operating temperature: –40 °C to +85 °C

Ideal For

• Expanding OEM CAN networks (ECUs, data loggers, digital dashes)

• Simplifying sensor harnesses in motorsports or industrial vehicles

• Rapid prototyping without custom PCB layouts
