Don’t want to see the NexGenEFI boot logo? No problem—here’s how to use your own.

What you need

• One microSD card (32 GB)

• Your logo image (you might need to resize it)

• IrfanView (free). Download it from the official IrfanView site by clicking here.

Image size requirements

• 5″ & 7″ LCDs: 800 × 480

• 10″ LCDs: 1024 × 600

Steps using Irfanview:

• Install Irfanview from the above link

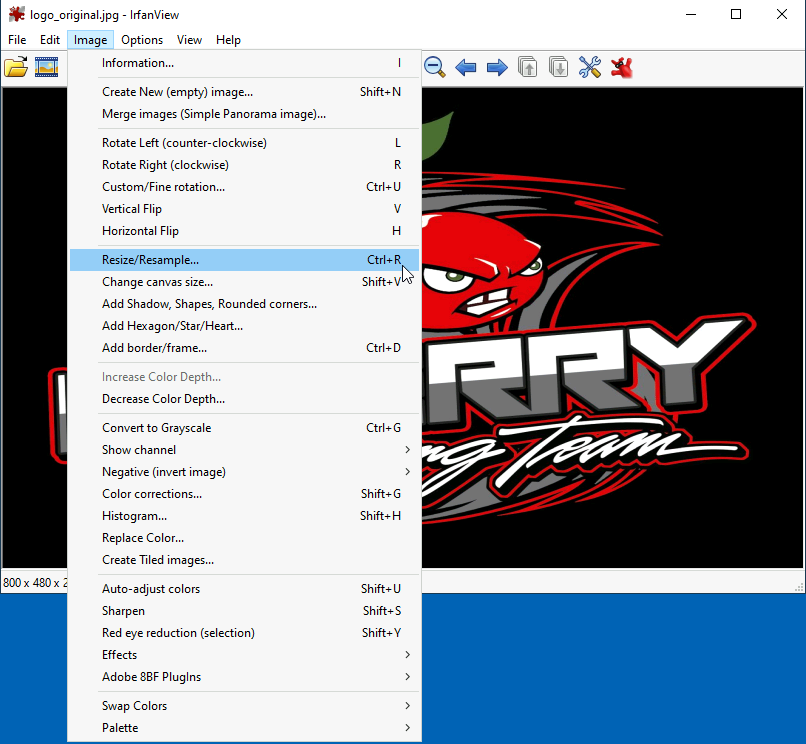

• Load your logo and resize it to the proper size for your Pro Edition.

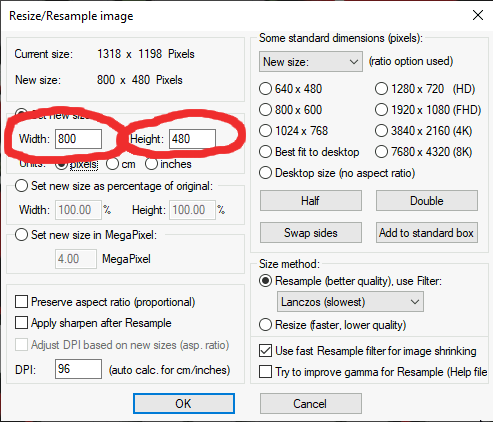

• Resize your logo to either 800×480 or 1024×600 depending on which Pro Edition you have and click OK.  (5/7 = 800×480, 10=1024×600)

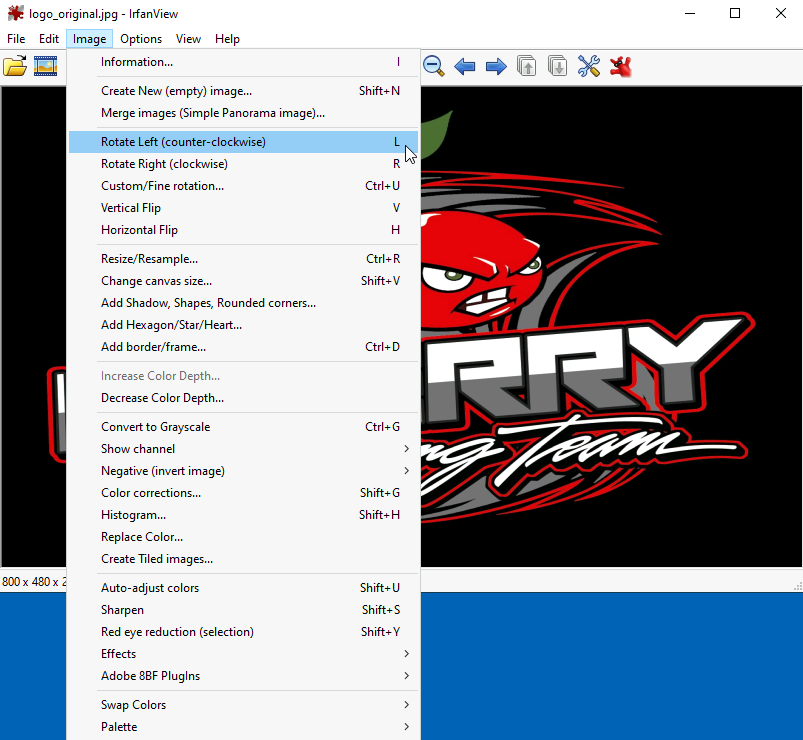

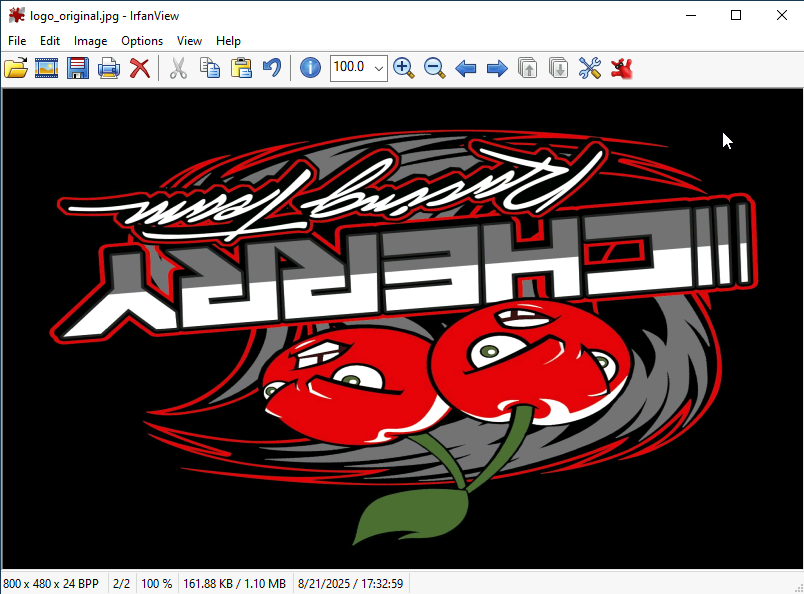

• Flip the image UPSIDE DOWN. Yes, UPSIDE DOWN.  Select this option until the logo is UPSIDE DOWN.

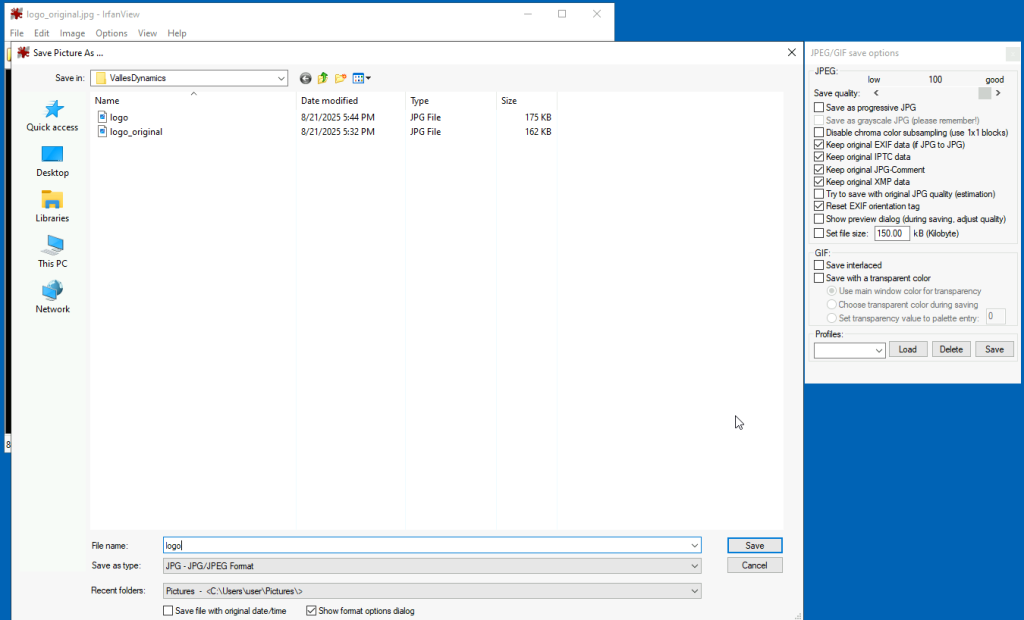

• Save your logo as logo.jpg in the FILE –> SAVE AS option and copy it to your MicroSD.  Insert the MicroSD card into the Pro Edition digital dash and leave it inserted.  Every time you power on the logo will be loaded from the MicroSD card and displayed.

• When you power on you will see your logo.
